Series mosfet voltage regulator/ rectifier Suzuki GSX 650 F 2008-2012

$199,56 Inc. Ex. $164,93.

Plug and play
Lowers stator temperature
3-year warranty
Compatible with all 12V batteries
High-performance Series mosfet voltage regulator/ rectifier

SKU: UR-SR-102-472 Category: Series voltage regulator/rectifier

The Ultimate Rectifier banner

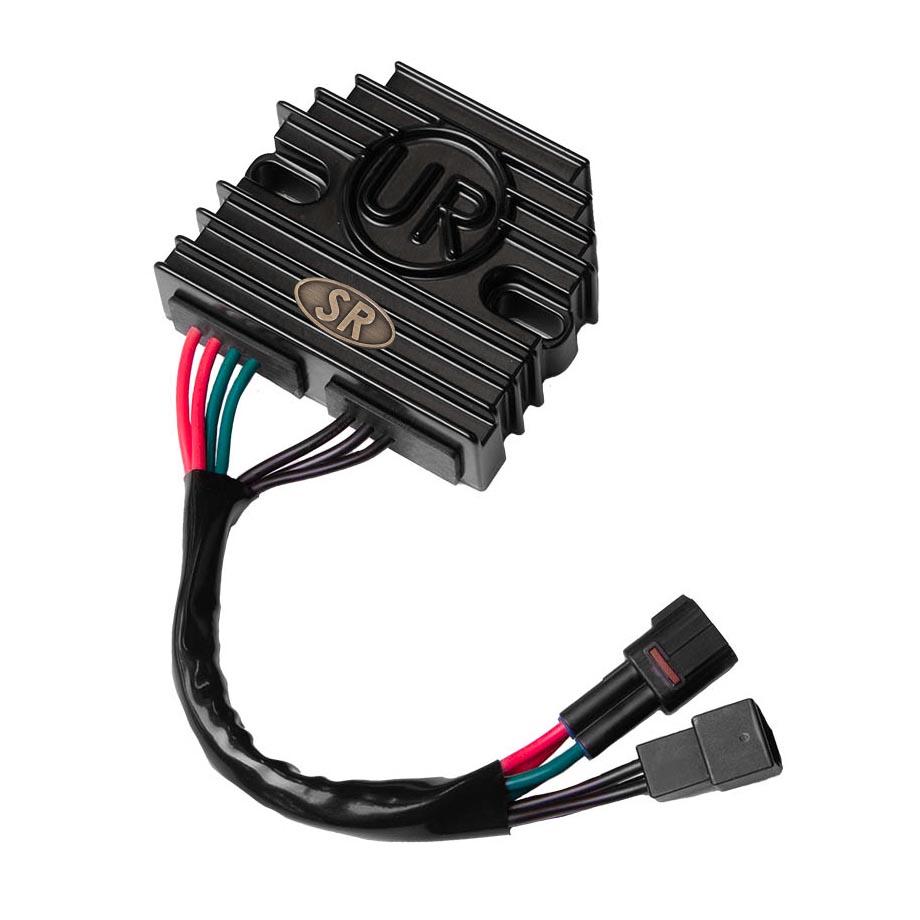

High-Performance Series MOSFET Voltage Regulator/Rectifier for Suzuki GSX 650 2008-2012 – UR-SR-102

The Series MOSFET voltage regulator/rectifier UR-SR-102 for Suzuki GSX 650 2008-2012 is a premium motorcycle voltage regulation solution, engineered for enhanced reliability and efficiency. Unlike traditional shunt regulators, this advanced Series MOSFET design minimizes power loss and heat generation in both the stator and regulator, making it perfect for extended rides and urban stop-and-go traffic.

Equipped with a smart control system, the UR-SR-102 delivers consistent voltage regulation, even at low RPMs. This helps extend your motorcycle battery’s lifespan and protects sensitive electrical components from damage due to voltage instability.

Crafted with cutting-edge MOSFET technology and integrated safety mechanisms, the UR-SR-102 offers robust protection for your motorcycle’s electrical system against voltage surges and overheating, ensuring dependable performance in the most demanding conditions.

click here to learn more about the Series MOSFET Ultimate Rectifier.

Warranty:

Backed by a 3-year warranty, the UR-SR-102 is recognized as the world’s most dependable Series MOSFET voltage regulator/rectifier.

Compatible Motorcycle Models:

Brand	Model	Years
Suzuki	GSX 650 / GSX650	2008 2009 2010 2011 2012
Suzuki	GSX 650 / GSX650 F	2008 2009 2010 2011 2012

The UR-SR-102 replaces the following OEM numbers:

32800-02H00 / 32800-18H00 / 32800-21H00 / 32800-41F00 / 32800-41F10 / 32800-41F11 / 32800-47H00 / 47H20 / SH811AB / 32800-41G00 / 32800-47H10

Package Contents – What’s Included:

1x Ultimate Rectifier UR-SR-102
1x Contra connector with terminals
1x Set of Allen mounting bolts

Technical Specifications:

Product Dimensions:

Weight	0,4 kg
Dimensions	31,6 × 9,2 × 2,8 cm
Brand	Suzuki
Engine size	650 CC
Model	GSX 650
Model years	2008, 2009, 2010, 2011, 2012
Types	F

Ask a question

Warranty

We are assured that the Ultimate Rectifier is the market’s most reliable and sustainable voltage regulator/ rectifier. Therefore, we provide a 3-year warranty. The most extended warranty on a voltage regulator/rectifier in the world.
